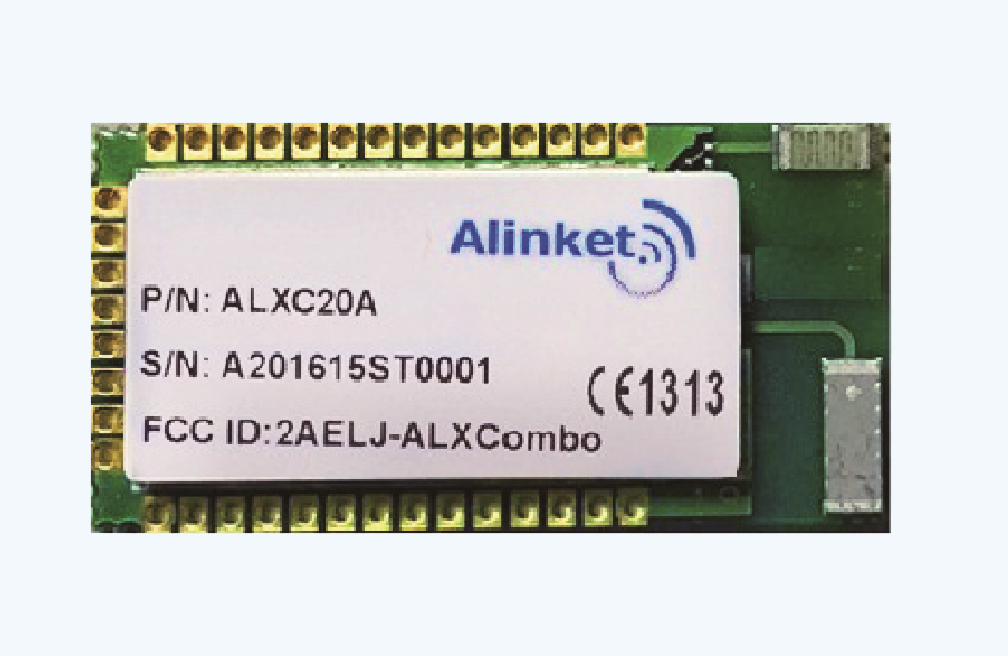

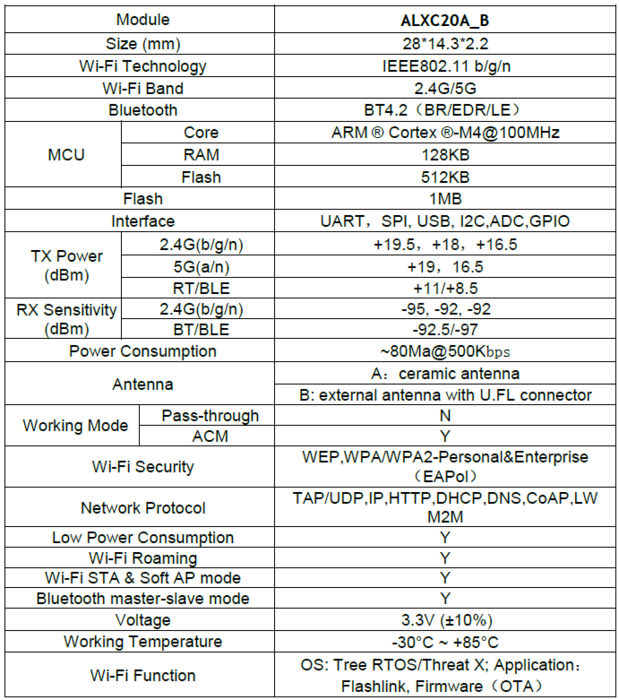

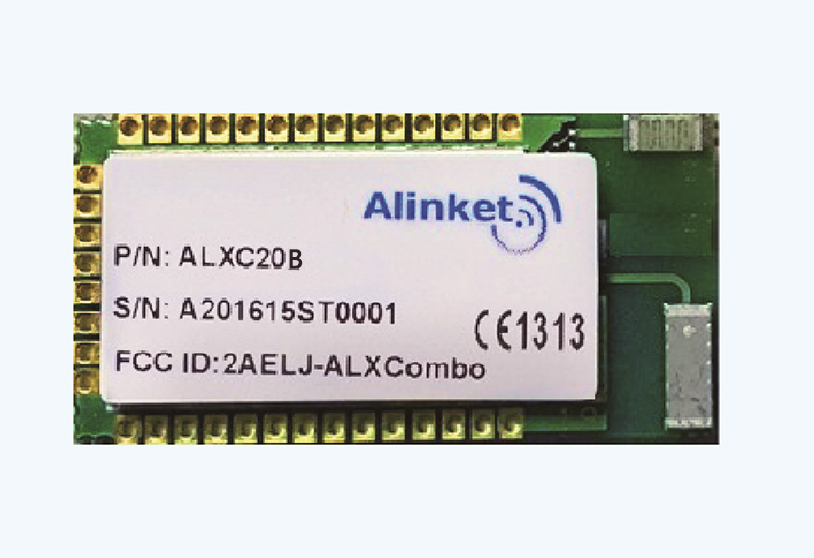

ALXC20A/B  Wi-Fi and BT/BLE Controller

Antenna : A: on-board ceramic antenna / B: external U.FL antenna
Ethernet / Network Interfaces : —
Other Interfaces : Wi-Fi: UART to Wi-Fi STA/AP; BT: UART to BT/BLE; Periph.: UART / SPI / I2C / ADC / GPIO / I2S
Memory & Storage : —
Cloud Protocol : —
Security : WPA / WPA2
Power Supply : 3.3 V
Power Consumption : —
Dimensions (mm) : 28 x 14.3 x 2.2
Weight : —
Operating Temp. : Wi-Fi: ACM commands; BT: ACM commands
Certification : CE / FCC / RoHS
Type / Function : Controller (protocol stack on-board)
Processor / MCU : ARM Cortex-M4
Battery & Life : —
Sensing Capability : —
Operating Temperature : -30 C to +85 C
Product Details

Introduction

ALXC20A/B is asmall-size, low-power, dual-mode IoT controller developed by ALINKET formedical, industrial, electrical, intelligent energy and other industries. Theproduct supports 2.4G/5GHz Wi-Fi and BT&BLE and provides multiple hostconnection interfaces, such as UART, 12C, GPIO, etc. Based on ALINKET IoTdevelopment suite (AiDK), ALXC20A_B controller supports custom functiondevelopment.



Characteristic

  • Support WLAN 802.11a/b/g/n 2.4GHz/5 GHz WI-FI +Bluetooth 4.2 dual mode

  • Cypress Wi-Fi & Bluetooth chip and ST ARM Cortex-M4 MCU

  • Support Wi-Fi STA and Soft AP dual mode

  • Enterprise Security —WPA/WPA2 enterprise or 802.1x/EAPol

  • Support fast roaming(optimal triggermechanism)

  • Multi-Socket TCP/IP connection

  • Bluetooth master-slave mode

  • Network configuration Application Flashlink, AP and One-time serverconfiguration

  • Support over-the-air upgrade(OTA)

  • Support TCP.UDP.MQTT.COAP.LWM2M and other IoT access protocols

  • Support built-in antenna or U.FL connector

  • Working Temperature: -30°C ~ +85°C

  • RoHS/CE/FCC Certification
