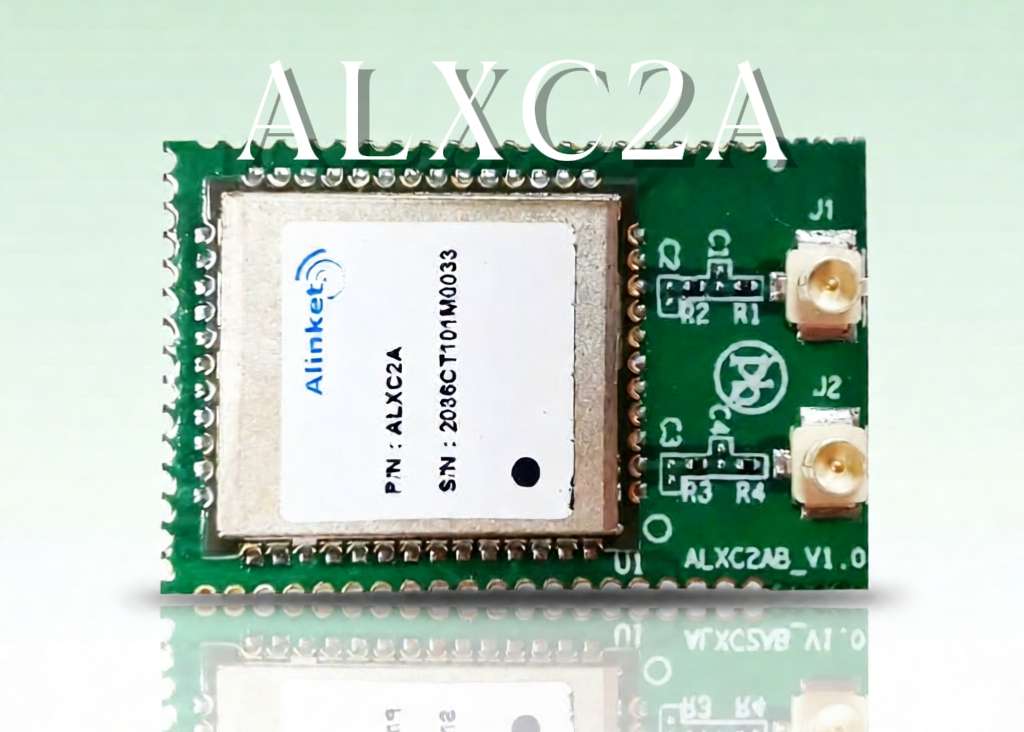

ALXC2A/B Wi-Fi 6 & Bluetooth 5.0 Module | Dual-Band MIMO 2x2 Wireless Module up to 1200Mbps

ALXC2A/B Wi-Fi 6 & Bluetooth 5.0 Module | Dual-Band MIMO 2x2 Wireless Module up to 1200Mbps

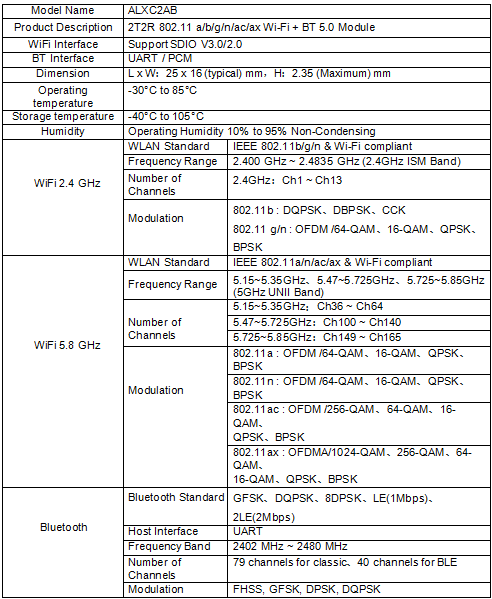

Antenna : External U.FL antenna / 2x2 MIMO
Ethernet / Network Interfaces : —
Other Interfaces : Wi-Fi: SDIO to Wi-Fi; BT: HCI to BT/BLE; Periph.: SDIO V2.0 / SDIO V3.0 / UART / PCM
Memory & Storage : —
Cloud Protocol : —
Security : WPA / WPA2
Power Supply : 3.3 V
Power Consumption : —
Dimensions (mm) : 25 x 16 x 2.35
Weight : —
Operating Temp. : —
Certification : —
Type / Function : Module (no protocol stack)
Processor / MCU : —
Battery & Life : —
Sensing Capability : —
Operating Temperature : -30 C to +85 C
Product Details

Introduction


The Alinket ALXC2A is a Wi-Fi and Bluetooth capable module with seamless roaming and advanced security, and can also interact with 802.11a/b/g/n/ac/ax2x2 access point MIMO standards from different vendors. Dual-stream connectivity of up to 1200Mbps is possible in 802.11ax. In addition, the ALXC2A includes an SDIO interface for Wi-Fi and a UART/PCM interface for Bluetooth.



Characteristic


Ø IEEE 802.11 Key Feature

Ø Lead Free design which is compliant with ROHS requirements.

Ø IEEE 802.11ax draft compliant.

Ø Dual-stream spatial multiplexing up to 1200 Mbps data rate.

Ø 20, 40, 80 MHz channels with optional SGI. (256 QAM modulation)

Ø Full IEEE 802.11a/b/g/n/ac legacy compatibility with enhanced performance.

Ø Support U.FL connector , MIMO2*2.

Ø Supports standard SDIO v3.0, compatible

with SDIO v2.0

Ø Bluetooth Key Feature

Ø BT host digital interface:

- HCI UART (up to 4 Mbps)

- PCM for audio data

Ø Complies with BT 5.0 with provisions for supporting future specifications

Ø Supports extended synchronous connections (eSCO)

Ø Adaptive frequency hopping (AFH) for reducing radio frequency interference.

Ø A simplified block diagram of the module is depicted in the figure above.



Description


Let us build the most stable and fastest network for you

Deeply rooted in the IoT industry for 13 years, we tailor a new smart interconnection experience covering all scenarios for you.

Tell us what you are building — volume, timeline and target market — and the team will come back with the right module, SDK and reference design.

We typically reply within 1 business day.
