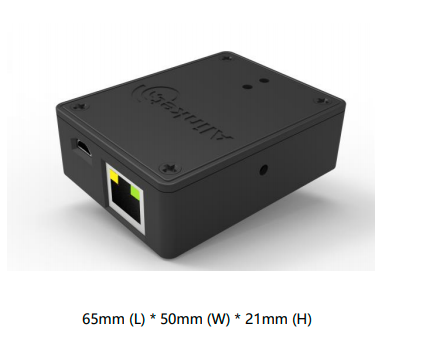

ALXB10 ——Ethernet Wi Fi Bridge
ALXB10 connects Ethernet interfaces to WiFi. With Alinket's self-developed PC-sideconfiguration software, AlXB10 can quickly and flexibly wirelessly connect existing Ethernetdevices to accelerate iot innovation at the lowest cost.
Highlights
Built-in antenna, simple and beautiful L2F is simple and easy to use, plug-and-play after network configuration
The integration of ARM cortex-m4 microcontroller and 1MB flash ensures the excellentperformance and stability of the system
WiFi protocol supports IEEE 802.11a /b/g/n, 2.4G and 5G
Support fast roaming, reconnect after disconnection
Dedicated PC configuration tool, simple and fast parameter configuration
Two LED indicators directly reflect the working state of the equipment
Ultra-low power consumption, standby power consumption as low as 1.2W
Applications
Medical treatment and health
Industrial control and monitoring
Environment and energy
Smart office and smart home
All terminal devices that requires a wireless network port

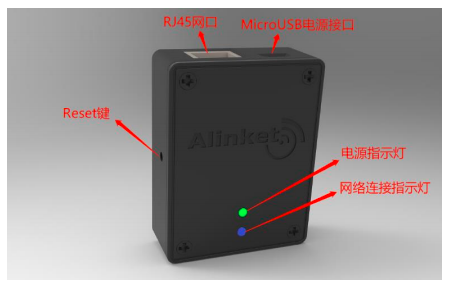

Interface Information
Ethernet RJ45 port x1
Micro USB interface x1
LED indicator x2
Reserved function key x1

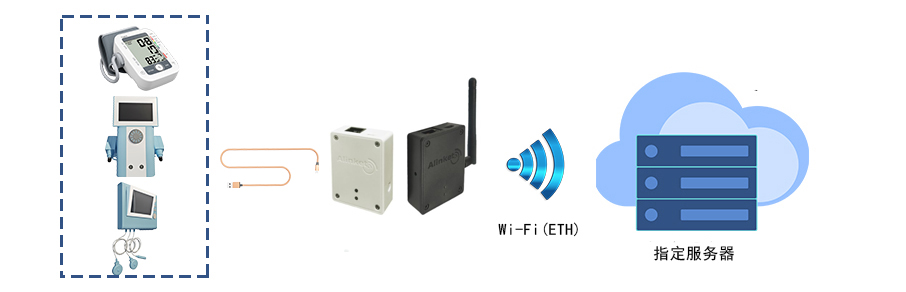

Scene Architecture
After the configuration, ALXB10 connects to the customer device through a network cable. ALXB10 uploads the collected service data to the network or cloud server through WiFi. Terminalequipment can be wireless requirements: monitors, electrocardiogram machines, ventilators, etc.
ALXB10 Specification
Size | 64mm(L) x 49mm(W) x 21mm(H) |
Weight | 40g |
Master Chip | ARM Cortex M4, 196KB RAM |
Flash | 1MB |
WiFi Controller | WiFi Protocol Support | EEE802.11a/b/g/n, 2.4GHz/5GHz |
Security and Encryption Type | Security：WEP_PSK、WPA/WPA2_PSK；encryption type：AES、TKIP |
MCU | ARM Cortex M4, 196KB RAM |
Flash | 1MB |
Transmit Power | 2.4G | +19.5dBm（11b）、+18dBm（11g）、+16.5dBm（11n） |
5G | +19dBm（11a）、+16.5dBm（11n） |
Receiving Sensitivity | 2.4G | -95dBm（11b）、-92dBm（11g）、 -92dBm（11n） |
5G | -90.5dBm（11a）、-90.5dBm（11n） |
Micro USBInterface | 1. Power input: 5V/1A 2, communication function: network configuration and firmware upgrade |
Ethernet Interface | 10m / 100M adaptive |
LED | 2 LED : power supply and network connection indicator |
Hide Key | Reservation function |
Working Temperature | -40°C ~ 85°C |
*Note:Pleasecontactyourlocalsalesofficeordistributorsformoreinformation.
