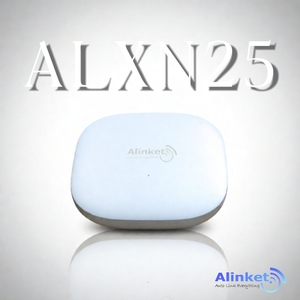

ALXN25 Medical-Grade Router

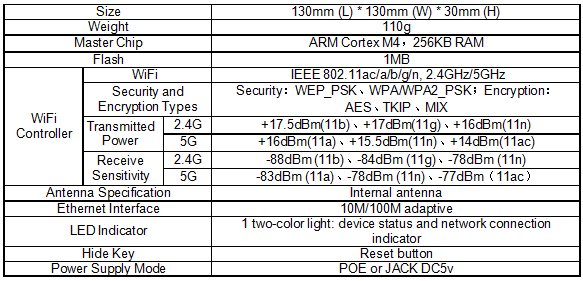

Antenna ：	Built-in dual antennas
Ethernet / Network Interfaces ：	1 × RJ45 10/100 Mbps (PoE)
Other Interfaces ：	DC jack ×1 (5 V, optional), two-color LED ×1, reset button ×1
Memory & Storage ：	1 MB Flash
Cloud Protocol ：	—
Security ：	WEP_PSK / WPA/WPA2_PSK; AES, TKIP, MIX
Power Supply ：	PoE or DC 5 V (jack)
Power Consumption ：	—
Dimensions (mm) ：	130 × 130 × 30
Weight ：	110 g
Operating Temp. ：	-30 °C ~ +85 °C
Certification ：	SRRC
Type / Function ：	Medical-grade router (wireless switching between AP and STAs)
Processor / MCU ：	ARM Cortex-M4
Battery & Life ：	——
Sensing Capability ：	——
Operating Temperature ：	-20 C to +80 C

Product Details

Introduction

Alinket N25 Wireless AP products enable wireless exchange and access between WiFi APs and STAs, and can be directly connected to POE switches for easier deployment.

Characteristic

Ø Built-in dual antenna design, faster and more stable transmission

Ø L2F, plug and play

Ø Integrated ARM Cortex-M4 microcontroller and 1MB flash to ensure excellent system performance and stability

Ø IEEE 802.11ac/a/b/g/n, 2.4G and 5G

Ø Supports POE for simplified deployment

Ø Supports the DHCP function and supports independent small-range networking

Ø Intelligent channel selection function, effectively avoid interference

Ø Dedicated PC configuration tool, simple and fast parameter configuration

Ø Support firmware upgrade

Ø 1 LED indicator to directly reflect the working status of the equipment

Ø Meet SRRC radio regulatory requirements
