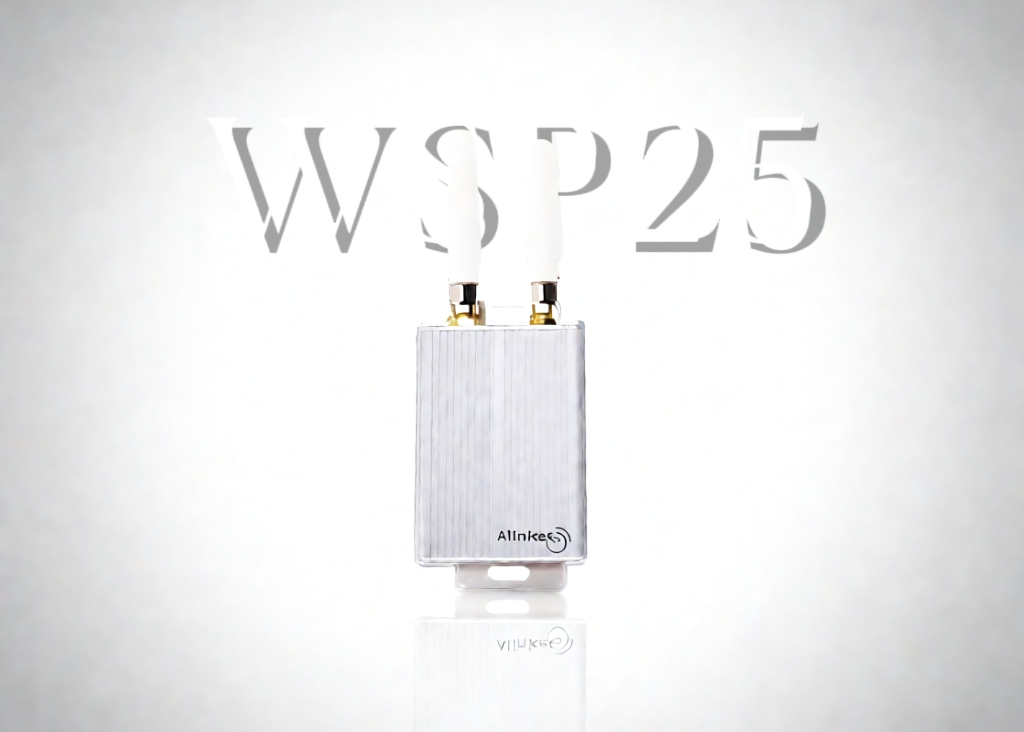

WSP25 Wireless Switch

Antenna ：	2 × external SMA, 3 dBi
Ethernet / Network Interfaces ：	1 × RJ45 10/100 Mbps
Other Interfaces ：	Micro USB ×1 (5 V/1 A config), LED ×2, hidden key ×1
Memory & Storage ：	1 MB Flash
Cloud Protocol ：	—
Security ：	WEP_PSK / WPA/WPA2_PSK; AES, TKIP, MIX
Power Supply ：	PoE or Micro USB 5 V / 1 A
Power Consumption ：	Standby as low as 1.2 W
Dimensions (mm) ：	82 × 44 × 21
Weight ：	75 g
Operating Temp. ：	-30 °C ~ +85 °C
Certification ：	—
Type / Function ：	Wireless switch (AP/STA wireless switching, Ethernet to Wi-Fi)
Processor / MCU ：	ARM Cortex-M4
Battery & Life ：	——
Sensing Capability ：	——
Operating Temperature ：	-30 C to +85 C

Product Details

Introduction

Alinket WSP25(Wireless Switch Product),The product realizes the wireless switching and access function betweenWi Fi AP and STAS, and can flexibly and quickly convert the original Ethernetconnection into WiFi wireless connection with the self connected andindependently developed PC side configuration tool.

Characteristic

Layer 2 Forwarding, plug and play
Special PC configuration tool, efficient and fast
Support Poepower supply and simpler deployment
Support 802.11 AC / A / B / g / N, 2.4g/5g dual band
Support DHCPfunction, independent small-scale networking
It has thefunction of intelligent channel optimization to effectively avoid interference
Two indicator lights visually reflect the workingstate of the equipment

Description
