Introduction

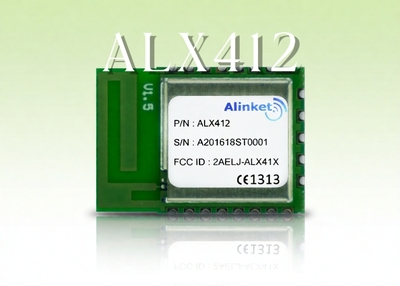

The ALX412 is a small, low-powered, self-contained, certified BLE controllers that provide simple UART-to-BLE connectivity. These controllers are ideal solutions for device manufacturers who are looking for wireless connectivity in medical and healthcare applications, industrial control equipment, home appliances and smart energy systems.
Characteristic
Ø Bluetooth 5.0 – Low Energy(BLE 5.0)
Ø Host interfaces: UART
Ø Support both Slave & Master mode Mastermode supports up to 5 slaves
Ø Support Slave-Master-Slave bridge function or BLE Gateway
Ø BLE MIDI, HID&HOGT(HID over GATT)
Ø BLE MIDI Time Latency<10ms
Ø PCB antenna with high receive sensitivity, coverage range 50 meters
Ø Minimum power consumption in Beacon mode is about 15uA
Ø Over-the-Air (OTA) upgrade support
Ø Operating temperatur: -30°C ~ +85°C
Ø ROHS/CE/FCC Certification
Ø Remote control

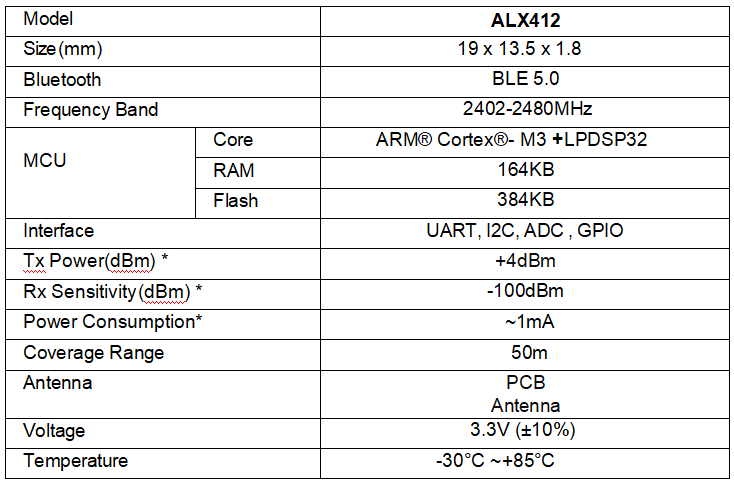

Description
